Dang, just realised how long it's been since I gave anyone more stuff !


Here is the car as roaded.

For anyone with a car that gets lots of dirt / water etc on the floor and under the seat

The front wheel sensor disc

Hobbawobba, have a look at the way I get cold air in from alongside the radiator. Works real well.

A slight variation to the Elford idea is in my trials car. The wiring for the original washer is connected to an extension harness (two wires from a two pin connector direct plug in) which runs to the headlight washer just about as described. Headlight washer tank has a plastic plug in the fill neck...

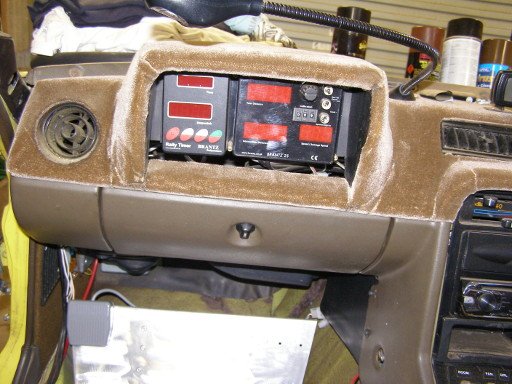

These were when I was modifying the dash. makingdash2.JPG makingdash1.JPG The housing over the trip meter and clock is constructed with 1mm thick ABS plastic sheet (styrene) and covered with sprayed on impact foam. The meters sre mounted on a concertina fold aluminium bracket from the upper steel ar...

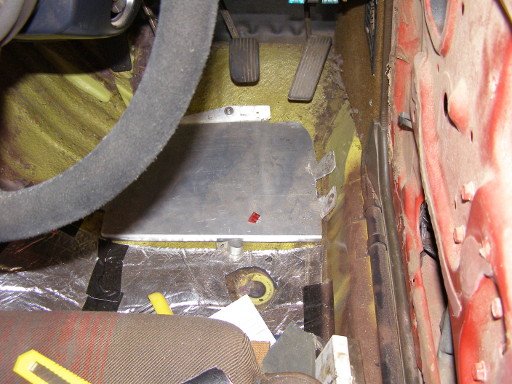

Protection against floor heat for the driver Yes the doors are off yet another ed car

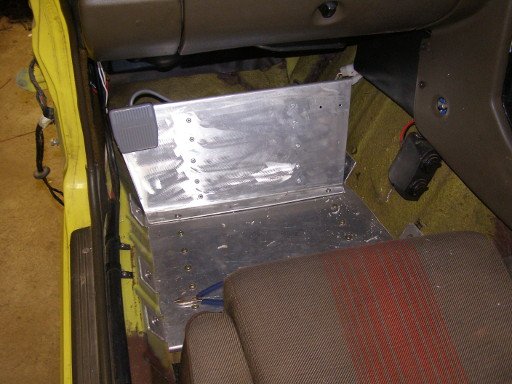

And to give the nav something to push on when it's one of those "oh, oh oohhh!!!" moments The grey thing is a foot switch for zeroing the intermediate distance on the trip meter

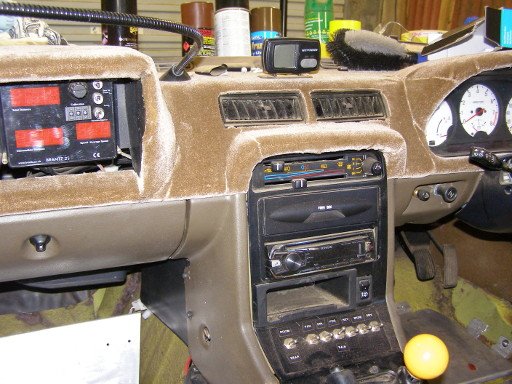

Dash as seen by driver by navigator the funny little black thing on the centre top of dash is an electronic compass.
Yes the shift knob is a bright yellow ball, much easier to use on a dark night in the middle of nowhere

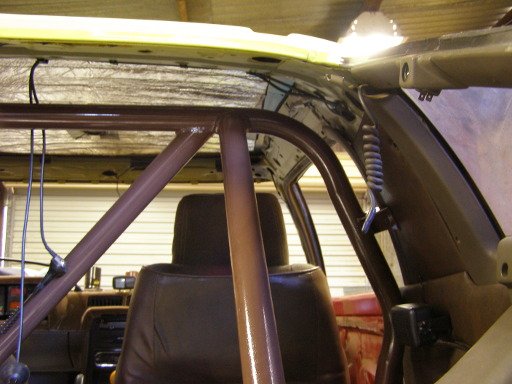

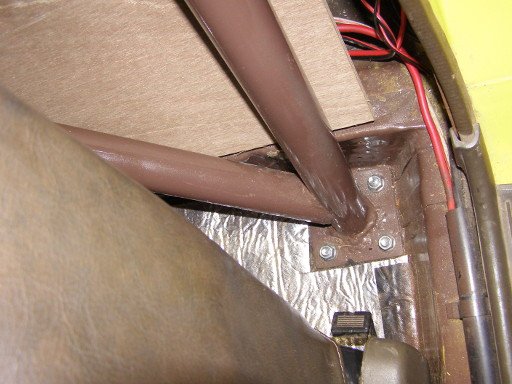

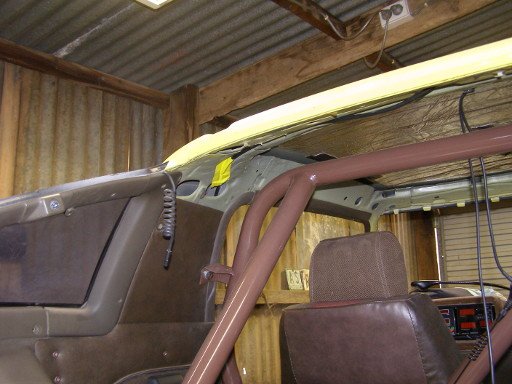

And in case we ever roll the car

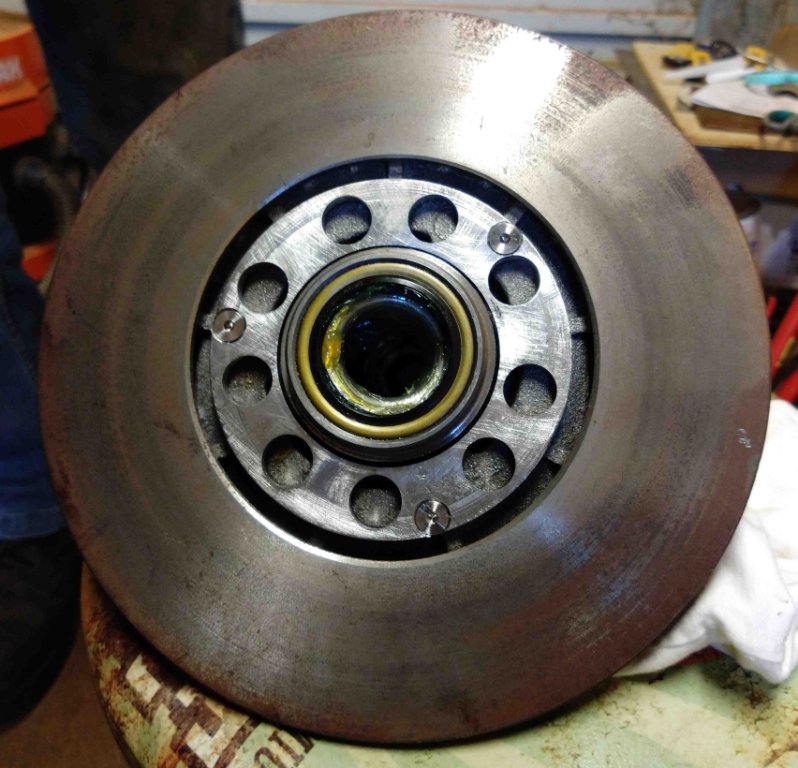

It's been lomg getting this done but som update pics from early Sensor and sensor mount in front caliper plate. sensor mount.jpg sensor.JPG and the first version of the disc inside the front hub, steel inserts in aluminium plate disc.JPG which proved to be totally unsuccessful! Email to Brantz got t...
